SideBar如何做

Posted on Edited on In Views: Disqus:



注意喔，這裡是講SideBar(側邊欄)不是講SlideBar(滑塊)喔，別搞錯。

我在網路上有看到一款中規中矩但又有點變化的Fancy Sidebar Navigation，

我很喜歡，所以我想了解他大概是如何做的。

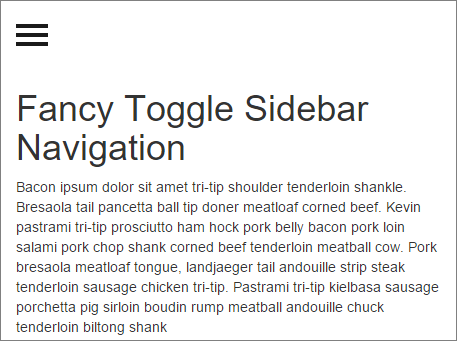

側邊欄按鈕前為下列close樣式

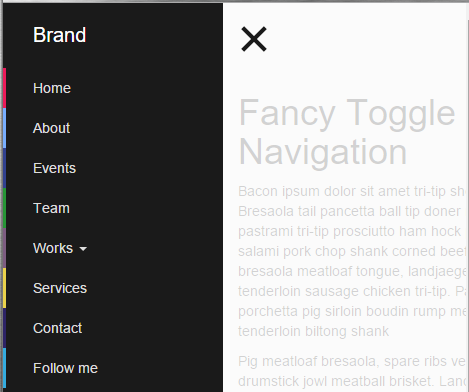

按鈕後為下列open樣式

要如何做到呢?



一、SideBar以Bootstrap為基底

以下是之前所學到的navbar範例

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>Bootstrap Template</title>
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.6/css/bootstrap.min.css"
          integrity="sha384-1q8mTJOASx8j1Au+a5WDVnPi2lkFfwwEAa8hDDdjZlpLegxhjVME1fgjWPGmkzs7" crossorigin="anonymous">
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.6/css/bootstrap-theme.min.css"
          integrity="sha384-fLW2N01lMqjakBkx3l/M9EahuwpSfeNvV63J5ezn3uZzapT0u7EYsXMjQV+0En5r" crossorigin="anonymous">
</head>
<body>
    <nav class="navbar navbar-default" role="navigation">
        <div class="navbar-header">
            <button type="button" class="navbar-toggle collapsed" data-toggle="collapse" data-target="#bs-example-navbar-collapse-1">
                <span class="sr-only">Toggle navigation</span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
                <span class="icon-bar"></span>
            </button>
            <a class="navbar-brand" href="#">Brand</a>
        </div>

        <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
            <p class="navbar-text">當寬度小於768px就會隱藏</p>
        </div>
    </nav>

    <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.11.3/jquery.min.js"></script>
    <script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.6/js/bootstrap.min.js"
            integrity="sha384-0mSbJDEHialfmuBBQP6A4Qrprq5OVfW37PRR3j5ELqxss1yVqOtnepnHVP9aJ7xS" crossorigin="anonymous"></script>
</body>
</html>

其實Fancy Sidebar Navigation的範例是以Bootstrap為基底，

但已有相當程度的改寫，所以公版Bootstrap的navbar範例只可參考。



二、分析

1、決定HTML骨架

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <title>JS Bin</title>
    <link rel="stylesheet" href="http://maxcdn.bootstrapcdn.com/bootstrap/3.3.0/css/bootstrap.min.css">
    <link href="sidebar.css" rel="stylesheet" />
</head>
<body>
    <div id="wrapper">
        <div class="overlay"></div>

        <!-- Sidebar -->
        <nav class="navbar navbar-inverse navbar-fixed-top" id="sidebar-wrapper" role="navigation">
        </nav>
        <!-- /#sidebar-wrapper -->

        <!-- Page Content -->
        <div id="page-content-wrapper">
        </div>
        <!-- /#page-content-wrapper -->

    </div>
    <!-- /#wrapper -->
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.11.1/jquery.min.js"></script>
    <script src="http://maxcdn.bootstrapcdn.com/bootstrap/3.2.0/js/bootstrap.min.js"></script>
    <script src="sidebar.js"></script>
</body>
</html>

要做sidebar會需要一些重要的標籤如：id="wrapper"、

id="sidebar-wrapper"、id="page-content-wrapper"

對了，忘了提重要的一點，就是有關於sidebar控制按鈕(漢堡包)的製作，

<div id="page-content-wrapper">
    <button type="button" class="hamburger is-closed" data-toggle="offcanvas">
        <span class="hamb-top"></span>
        <span class="hamb-middle"></span>
        <span class="hamb-bottom"></span>
    </button>
</div>

預設是關閉，他可以控制sidebar的重要開關。



2、再利用css控制版型顯示位置

其原理為新增一個close樣式與一個open樣式，

不過這裡只提sidebar展開前與sidebar展開後位置的變化。

#wrapper {
    padding-left: 0;
    -webkit-transition: all 0.5s ease;
    -moz-transition: all 0.5s ease;
    -o-transition: all 0.5s ease;
    transition: all 0.5s ease;
}

    #wrapper.toggled {
        padding-left: 220px;
    }

        #wrapper.toggled #sidebar-wrapper {
            /*toggled時寬度由零變到220*/
            width: 220px;
        }

#sidebar-wrapper {
    z-index: 1000;
    left: 220px;
    width: 0;
    height: 100%;
    margin-left: -220px;
    overflow-y: auto;
    overflow-x: hidden;
    background: #1a1a1a;
    -webkit-transition: all 0.5s ease;
    -moz-transition: all 0.5s ease;
    -o-transition: all 0.5s ease;
    transition: all 0.5s ease;
}

#wrapper.toggled #page-content-wrapper {
    position: absolute;
    /*已有#wrapper的padding-left: 220px;margin-right可不加*/
    margin-right: -220px;
}

#sidebar-wrapper::-webkit-scrollbar {
    display: none;
}

#page-content-wrapper {
    width: 100%;
    padding-top: 70px;
}



3、再決定當滑鼠按下時所要觸動的javascript事件

撰寫滑鼠點選後要切到哪一個class

$(document).ready(function () {
  var trigger = $('.hamburger'),
      overlay = $('.overlay'),
     isClosed = false;

    trigger.click(function () {
      hamburger_cross();
    });

    function hamburger_cross() {

      if (isClosed === true) {
        overlay.hide();
        trigger.removeClass('is-open');
        trigger.addClass('is-closed');
        isClosed = false;
      } else {
        overlay.show();
        trigger.removeClass('is-closed');
        trigger.addClass('is-open');
        isClosed = true;
      }
  }

  $('[data-toggle="offcanvas"]').click(function () {
        $('#wrapper').toggleClass('toggled');
  });
});

範例檔
